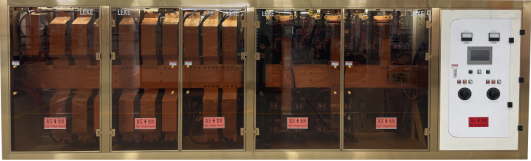

Intermediate frequency power cabinet

All power supply and control components are installed in steel cabinets that are easy to maintain. The fully transparent glass door enables maintenance personnel to carry out daily inspection conveniently and directly, and deal with problems found in a timely manner. The control part is installed on the aluminum hinged door which is flush with the height of the eye. Opening this door can easily access the recessed control circuit room. All cabinet doors are mechanically connected to increase the integrity of the steel cabinet. There are sealing strips around the cabinet door and each door is equipped with a lock. In addition, the door switch for safety protection is equipped. When any door is opened, the circuit breaker automatically cuts off the power to avoid danger.

The power supply at the incoming line end shall be a special power supply, and the incoming line of the power supply can be easily accessed from the top of the cabinet.

The lifting ring device is set for easy movement.

The control cabinet shall adapt to the working environment and have a waterproof and dust-proof structure, with the protection grade of IP54.

The control cabinet is equipped with red, yellow and green alarm indicators.

The control cabinet door shall be pasted with the equipment nameplate, indicating the equipment manufacturer, date of delivery, production serial number, specification, model, input voltage, power, equipment weight, etc.

Cables shall be classified and numbered according to requirements, and the category, transfer box number and terminal row number shall be indicated; All control wires shall be threaded into wire gauge tubes, crimped with terminal heads, and arranged in different zones on the terminal strip.
